Design Software

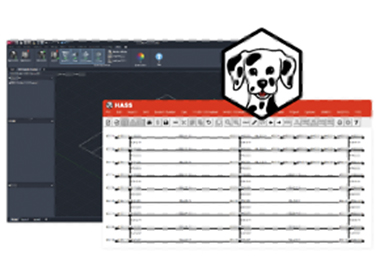

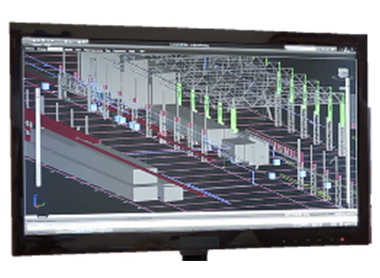

The fire protection industry relies on specialized software tools to ensure accurate design, compliance with codes, and efficiency in project delivery. For CAD sprinkler system design, these programs use tools which allow designers to create detailed two or three–dimensional layouts of sprinkler systems, integrating pipe routing, sprinkler spacing, and component placement in accordance with NFPA and other standards. These programs typically include hydraulic calculation software to perform pressure loss and flow demand analyses, ensuring system pipe sizing meets density/area requirements and available water supply constraints. Standalone Hydraulic calculation programs, without the system design and layout capabilities are also available. The rise of Revit and Building Information Modeling (BIM) has transformed coordination by enabling three-dimensional, data-rich models that integrate architectural, structural, and mechanical disciplines. These programs allow sprinkler layouts and clash detection in the BIM environment. For fabrication and stock listing, fabrication programs provide detailed cut sheets, material lists, and fabrication spool drawings, streamlining shop production and field installation.

Seismic bracing calculation software allows designers to size sway bracing and verify compliance with NFPA 13 seismic provisions. Likewise, Listed fluid delivery time calculation program(s) for dry systems are available which simulate air pressure, pipe volume, trip time, and other factors, analyzing dynamic air compression within the piping and the effect of the speed of the water as the piping fills with water, providing expected water delivery to any part of the system.
