HANGERS & SUPPORTS

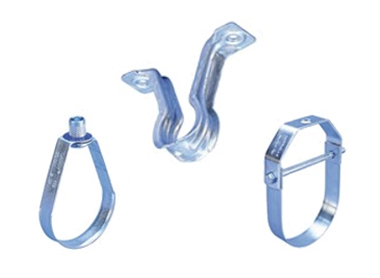

Fire protection pipe hangers and seismic bracing serve distinct but complementary roles in maintaining the integrity and reliability of sprinkler system piping. Hangers are primarily vertical support elements designed to carry the dead load of the pipe, fittings, valves, and contained water. They maintain proper alignment, prevent excessive deflection, and ensure that the system remains within allowable stress limits under normal operating conditions. Proper hanger spacing and attachment to the building structure are essential to avoid sagging, joint stress, or unintended loading on system components.

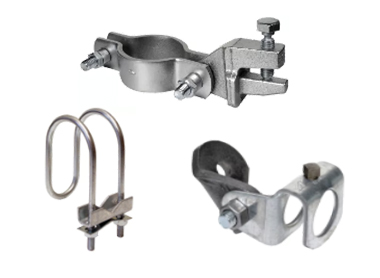

Seismic bracing, by contrast, is intended to resist lateral and longitudinal forces induced during an earthquake. While hangers support gravity loads, they provide little resistance to horizontal movement. Seismic bracing stabilizes the piping system by anchoring it against sway, separation, and impact with adjacent structural or nonstructural elements. This includes lateral braces to resist side-to-side motion and longitudinal braces to control movement along the pipe’s axis.

Bracing is critical during seismic events because unrestrained piping can oscillate, leading to joint failure, pipe rupture, or detachment from supports. Such failures can render a fire protection system inoperative precisely when post-earthquake fire risk is highest. Effective seismic bracing preserves system operability, limits damage, and supports continued fire suppression capability during and after seismic disturbances.
